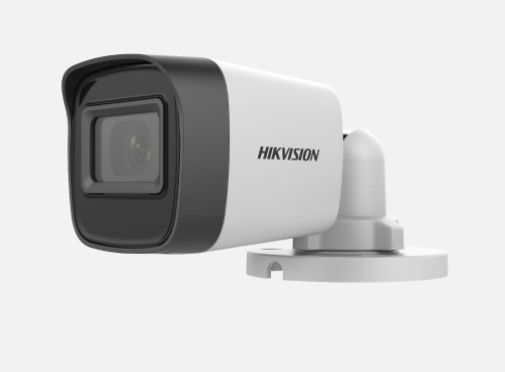

HIKVISION 2 MP Fixed Mini Bullet Camera

Description

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Day & NightICR
Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate

TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
Dimension57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″)
WeightApprox. 141 g (0.31 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%

Consumption
Max. 2.2 W
IR RangeUp to 25 m
Approval
ProtectionIP67
